Ionix Static Eliminators for sheet feeding printing and packaging presses, diecutters and bindery equipment
The problem of static in printing, packaging and bindery operations
Static builds up on the INTERIOR surfaces of the paper sheets in the machine feeder. This causes the sheets to be electrically attracted to each other and resist sheet separation by the feeder. The thinner the paper the worse this problem occurs. This causes either feeder jams or slower machine speeds. In order to eliminate this static, you must blow static elimination between the sheets.
Installing Ionix Static Eliminator in your feeder air line makes your feedr air eliminate those interior surface charges during sheet separation by directing Ionix static eliminating air in between he shees in the pile. The result is the internal static between the sheets in the pile is dissipated, resulting in no feeder jams and consistently iny get calls frcreased running speeds on your machines.y get
IF YOU HAVE HAD A STOPPAGE DUE TO STATIC IT WILL HAPPEN AGAIN!
We contantly get calls when machines are stopped by static. It's too late at that point. You'll lose more in time and paper than the cost of our static eliminators. Install static eliminators as a PREVENTATIVE solution so you don't hasve downtime due to static.
How to size and install Ionix in your feeder
For best results, ALL the air in the feeder needs to go through an Ionix Static Eliminator.
Sizing the Ionix for your feeder requires you to 1. identify the main blower hose and measure the inside diameter of that hose and 2. determine the maximum sheet size of your machine.
Once you determine those 2 specifications you can use the sizing chart below.
Some feeders have 2 feeder pumps or more than one blow/pressure outlet on the pump. You must install an Ionix on ALL the blow/pressure lines going to the pump.

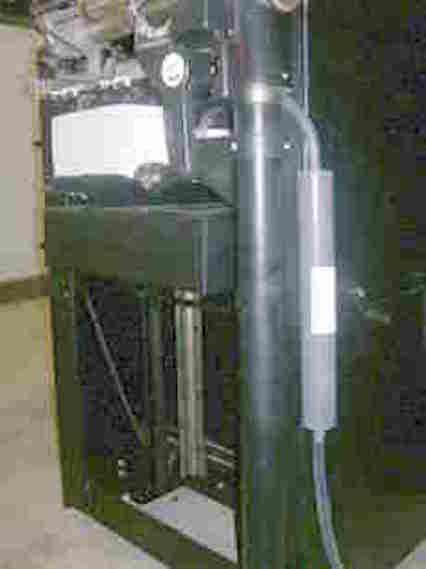

To install Ionix you will cut those hoses and push the hose ends over the tapered barbs of the Ionix. If it is difficult to reach that line, buy a same diamtr hose from you local home impovement store and extend to hose to the outside of the machine where it is convenient to install Ionix and run the hose back into the machine.

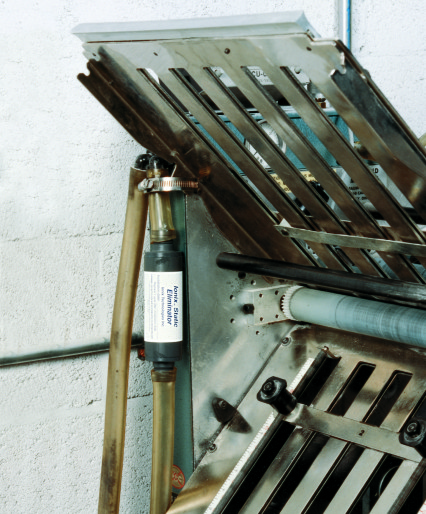

Click HERE to view installaion instructions for printing presses and folders.
For sheet-feeding machines up to 22" (550MM) x 34" (850MM) sheet size:
(Click on the underlined model to be directed to our secure on line store for pricing and to order)
for 1/2" (10MM) inside diameter feeder air hose:
Ionix 200-2
for 3/4" (20MM) inside diamter feeder air hose:
Ionix 200-3
for 1" (25MM) inside diameter feeder air hose:
Ionx 200-4
for 1 1/4" (30MM) inside diameter feeder air hose:
Ionix 200-5
for 1 1/2" (40MM) inside diameter feeder air hose:
Ionix 400-6
for 1 3/4" (45MM) inside diameter feeder air hose:
Ionix 400-7
for 2" (50MM) inside diameter feeder air hose:
Ionix 400-8
For sheet-feeding machines for 1/2" over 22" (550MM) up to 26" (650MM) x over 34" (850MM) up to 40" (1000MM) sheet size:
(Click on the underlined model to be directed to our secure on line store for pricing and to order)
for 1/2" (10MM) insode diameter feeder air hose: Ionix 300-2
for 3/4" (20MM) inside diameter feeder air hose:
Ionix 300-3
for 1" (25MM) inside diameter feeder air hose:
Ionix 300-4
for 1 1/4" (30MM) inside diameter feeder air hose: Ionix 300-5
for 1 1/2" (40MM) inside diameter feeder air hose: Ionix 400-6
for 1 3/4" (45MM) inside diameter feeder air hose: Ionix 400-7
for 2" (50MM) inside diameter feeder air hose: Ionix 400-8
Please contact Ionix if you want to install Ionix to eliminate static in the following applicatons:
Feeding plastic or synthetic sheets
Feeder board mis-registration due to static
Reducing static in offset spray powder systems
Static in deliveries
Static in web sheeters
Ionix Static Eliminators can help in these applications but for best results you should call us at 800-246-1784 to confirm proper sizing and installation.
Guarantee:
All Ionix products come with a 30 unconditional guarantee. If you are not satisifed with our prodyct return for a full refund. We have been manufacturing our static eliminators since 1994.
How to order:
You can call us at 800-246-1784 to order by phone.
You can order online through our on line store www.TheIonixStore.com using a credit card or PayPal.
You can also call your graphic arts dealer or service technician to order.
