Ionix Static Eliminators for electronic manufacturing blowoff line for extra ESD safety
How Ionix Static Eliminator can solve your PCB ESD clean up problems
Air is usually an electrical insulator. When you blow off compressed air over a surface, the friction of force of the air on that surface creates an electrostatic charge which can potentially damage your sensitive components in spite of all your ESD precautions.
By installing an Ionix Static Eliminator in each blow off line, Ionix makes the passing air electically conductive so the passing blow off air does not generate a static charge on the surface being blown off.It will also dissipate any static present on the surface.
How to install Ionix Static Eliminator
Installation is simple. Just cut the blow off air hose, push the hose ends over the end of Ionix and installation is complete. Ionix works using the force of the compressed air going through it to disspate static. Ionix does not require an electrical connection an contains no nuclear materials.
Which Ionix Static Eliminator model should I order for my PCB ESD blowoff line?
The model you need depends on the pressure you blow off the surface.
All Ionix PL300 and HPPL300 are designed to be installed on a 3/8" ID air hose.
Ionix Static Eliminator PL300 for blow off lines under 50 psi
Individual PL300 for air hoses up to 50PSI.
(Click on underlined model to be directed to our secure on line store to
order)
Ionix Static Eliminator PL300 Kit for blowing off electroci assembled circuit board under 50 PSI without high voltages or nuclear materials.
PL300 kit for 3/8" air hoses up to 50 PSI. Kit included PL300, 25' air
hose with 1/4" threaded nipple ends, air gin and 2 hose clamps.
(Click on the underlined model to be redirected to our secure on line
store to order)
Ionix Static Eliminator HPPL 300. Individaul HPPL for air hoses over 50
PSI. Available for 3/8" or 1/2" ID hose.
(Click on the underlined model to be redirected to our secure on line
store to order)

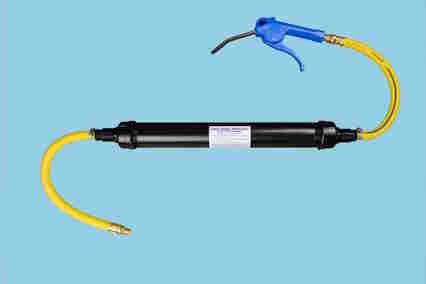

Ionix Static Eliminator HPPL 300 Kit for hoses over 50 PSI up to 150
PSI. Kit included HPPL 300, 25' of 3/8" ID air hose, air gun and 2 hose
clamps,
(Click on the underlined model to be redirected to our secure on line
store to order)
Guarantee
Our goal is to solve your static probem to your satisfaction.
Ionix is sold with an unconditional 30 day guarantee. Test our unit in your application for suitability of use for 30 days. If you are unsatisfied for any reason return it for a full refund. We warrant our product to be free of defects fo 6 months after installation.
How to get started
Call Ionix at 800-246-1784 and we'll be glad to review your particulare problem and determine if an Ionix Static Eliminator will solve your sttic issue. You can also order a PL300 or HPPL at our online store www.TheIonixStore.com.
Ionix Static Eliminators are not suitable for clean room environments.
